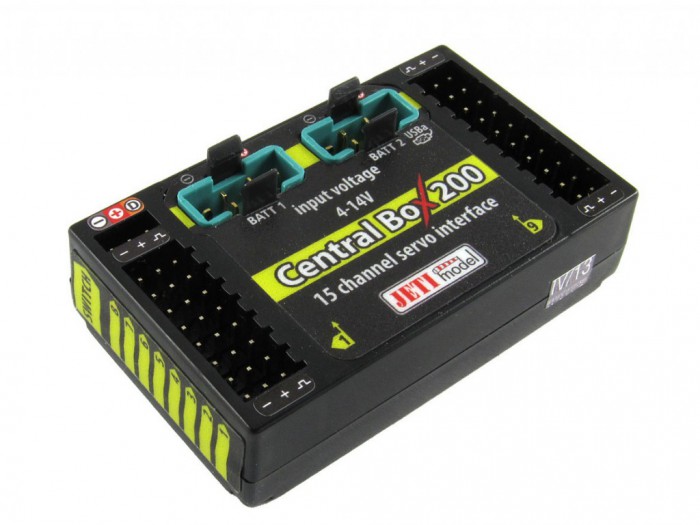

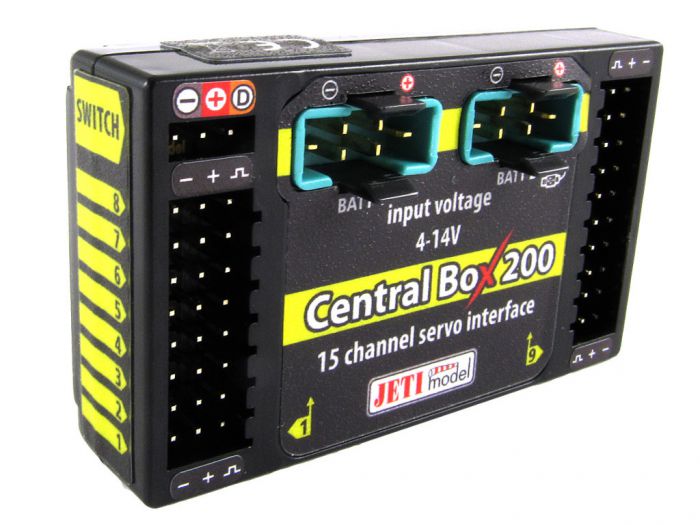

JETI - Central Box 200 - J-CB-200
The Central Box 200 is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box has a unique design that provides overload protection at each servo output. The Central Box can manage two batteries and fully supports the JETI EX telemetry system. Up to two receivers with serial (PPM, EX Bus) output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response. Central Box 200 supports up to 15 protected servo outputs, two battery inputs and incorporates possibility to connect an RC or magnetic switch.
Features:
Overload protection on each channel

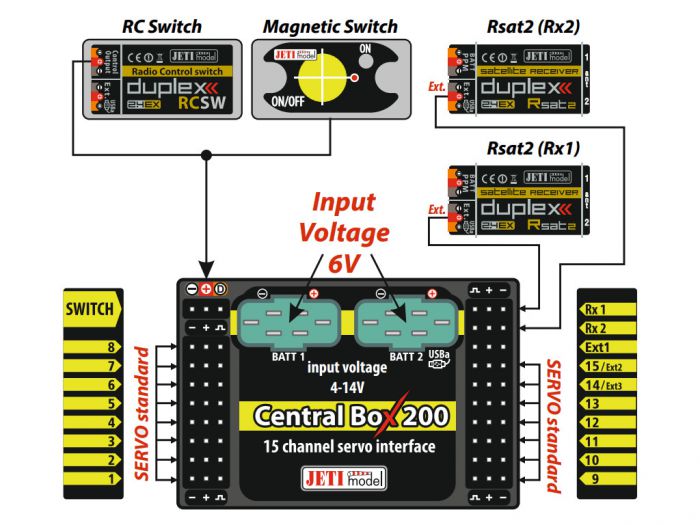

Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus)
Built-in Expander function for up to 3 sensors
Input for magnetic switch or RC switch
MPX battery input connectors: 2x
100Hz mode of servo outputs (10ms period)
Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
Easy settings changes via DC/DS transmitter
Firmware updates by user
Suitable for use with high voltage (HV) servos
Compact size for easy installation
Each output is individually configurable (channel assignment, trim, reverse, ATV)
Technical data:
Weight [g]: 30
Dimensions [mm]: 63 x 38 x 17
Sustained current [A]: 15
Number of channels: 15
Telemetry: Yes
Operational temperature [°C]: -20 ... 75
Compatible protocols: EX Bus, PPM
Supply Voltage [V]: 4 ... 14
Satellite receiver support: Yes
Batteries NiXX: 4 ... 10
Batteries LiXX: 2 ... 3
Idle current [µA]: 120
Number of battery inputs: 2
Voltage stabilization: No
Peak current (2s) [A]: 90
Technische Daten
| Hmotnost [g] | 30 |
| Rozměry [mm] | 63 x 38 x 17 |
| Trvalý proud [A] | 15 |
| Počet kanálů | 15 |
| Telemetrie | Ano |
| Rozsah pracovních teplot [°C] | -20 ... 75 |
| Kompatibilní protokoly | EX Bus, PPM |
| Napájecí napětí [V] | 4 ... 14 |
| Podpora satelitních přijímačů | Ano |
| Počet článků NiXX | 4 ... 10 |
| Počet článků LiXX | 2 ... 3 |
| Klidový proud [µA] | 120 |
| Počet bateriových vstupů | 2 |
| Stabilizace napětí | Ne |
| Špičkový proud (2s) [A] | 90 |
