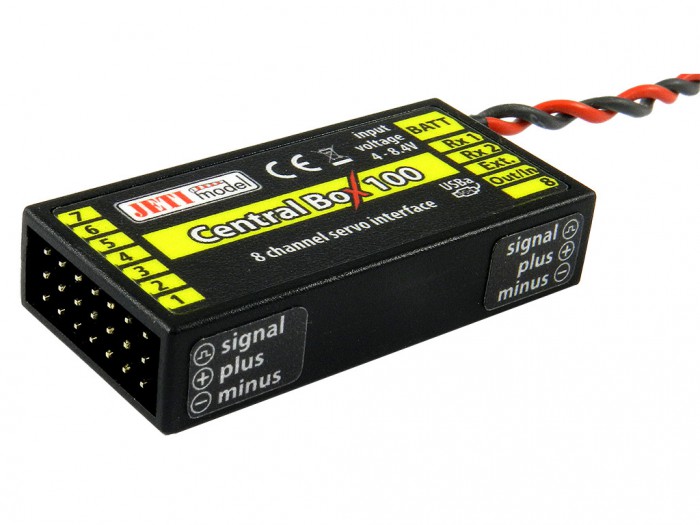

JETI - Central Box 100 - J-CB-100
The Central Box 100 is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box has a unique design that provides overload protection at each servo output. The Central Box can manage a single battery and fully supports the JETI EX telemetry system. Up to two receivers with serial (PPM, EX Bus) output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
Central Box 100 supports up to 8 protected servo outputs and a single battery input.
Features:
Overload protection on each channel

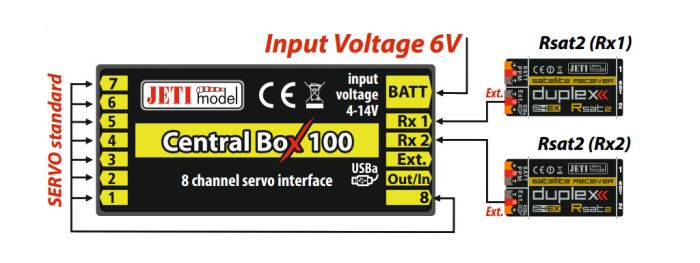

Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus)
Built-in Expander function
MPX battery input connectors: 1x
100Hz mode of servo outputs (10ms period)
Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
Easy settings changes via DC/DS transmitter
Firmware updates by user
Suitable for use with high voltage (HV) servos
Compact size for easy installation
Each output is individually configurable (channel assignment, trim, reverse, ATV)
Technische Daten
| Weight [g] | 20 |
| Dimensions [mm] | 52 x 25 x 11 |
| Sustained current [A] | 10 |
| Number of channels | 8 |
| Telemetry | Yes |
| Operational temperature [°C] | -20 ... 75 |
| Compatible protocols | EX Bus, PPM |
| Supply Voltage [V] | 4 ... 14 |
| Satellite receiver support | Yes |
| Batteries NiXX | 4 ... 10 |
| Batteries LiXX | 2 ... 3 |
| Number of battery inputs | 1 |
| Voltage stabilization | No |
| Peak current (2s) [A] | 90 |
